Descrizione

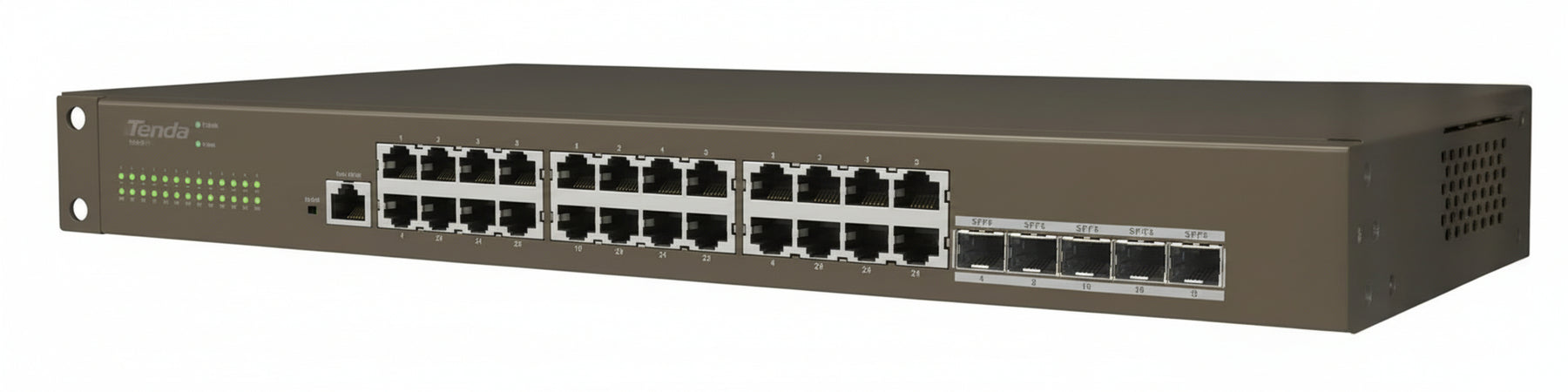

TEG3328F è uno switch managed ideale per reti di dimensioni medio-grandi come le imprese e gli hotel.

Modello

TEG3328F

Standard di rete

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s

LED

One Link/Act LED indicator for each port
One Power LED indicator for each device
One SYS LED indicator for each device

Interfaccia

24*10/100/1000 Base-T Ethernet ports
4*1000 Base-X SFP ports
1*Console port

Numero di ventole

N/A

Risorse sistema di trasmissione

Recommended: CAT5/5e UTP or better

PoE budget

Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Modalità di invio

Store-and-forward

Capacità di commutazione

56Gbps

Efficienza del sistema di invio dati

41.70Mpps

Velocità di inoltro dei pacchetti

12Mb

Tabella degli indirizzi MAC

16K

Jumbo frame

10K

PoE power supply

N/A

Voltaggio in entrata

100-240V AC 50/60Hz

Consumo energetico

Full load: ＜24W
Empty load: ＜10W

Dimensioni

440 mm x 179.6 mm x 44 mm(L*W*H)

VSWR

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Efficienza energetica

Support

Ambiente

Operating temperature: 0°C - 45°C
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing

Certificazioni

CCC, FCC, CE, RoHS

L3 Features

N/A

Buffer

N/A

Caratteristiche di sicurezza

Supports ARP receiving limit
Supports discarding unknown MAC addresses
Supports DoS attack defense
Supports 802.1x security authentication
Supports RADIUS authentication

VLAN

Supports 4K VLAN table
Supports IEEE 802.1Q VLAN
Supports three port link types: Access, Trunk and Hybrid

DHCP

DHCP Snooping
Supports Option 82 policy configuration

Congiunzione di porte

Static aggregation
LACP dynamic aggregation

Spanning tree

IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge ports
Supports BPDU statistics
Supports BPDU Guard, BPDU Filter
Supports Root Guard, Loop Guard
Supports Loopback-detection

Multicast

IGMP Snooping V1/V2/V3
Supports fast leave configuration on ports

Riflettività di porta

Supports N: 1 port mirroring

QoS

SP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mapping

Caricamento e aggiornamento

Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export

Gestione e manutenzione

Supports Telnet configuration and Console port configuration
Supports SNMP V1/V2/V3
Supports web management and maintenance
Supports Ping/Tracert/cable test
