HOTPOINT ARISTON INDESIT WHIRLPOOL

TIMER FINE COTTURA

RICAMBIO ORIGINALE

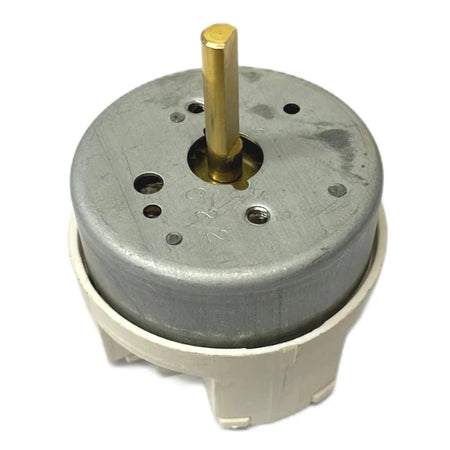

Codice ricambio: C00052578 - 482000026805

Temporizzatore timer 120 minuti monofresato
- Interruttore a 2 vie ad apertura rapida con opzione di accensione non temporizzata (PM)
- Perno Ø 6 x 4,5 mm.
- Lunghezza perno 23,5 mm.
- Portata 16A 250V
- Temporizzazione 120' su 300°

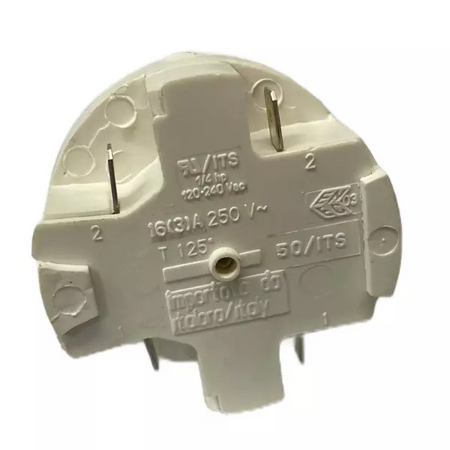

- Attacchi faston 6,3 x 0,8 mm.
- Segnalazione acustica di fine ciclo 3 secondi
- Entrata viti max 2,5 mm. (M4)
- Temperatura d'impiego +125°
PM = Posizione manuale con contatto chiuso,in posizione 0 contatto aperto

Monta sui seguenti modelli:
G2 V(W)
G1 MC (W) GR
G0 ME (W) GR
G0 ME (GR) GR
FM22 M IX
G2 V.E (W)
FM22 M (AN)
G 650 MC
G2 VTD (W) R
G1 MC (W) R
FM22 M IX AUS.1
FM 52F (WH)
FM 52F (BK)
G1 MD10 (X)
FM 52 R IX
PM52 IX(1)
PM52 (WH)(1)
PM52 (BK)(1)
C 648 PT X
C 648 B X
F ER/60 IX
F ER/90
F ER/60 IX O1
F ER/90 IX 01
F KG 904PF IX
F KG 904PF CF
F BV114PF AL/BL
F BV114PF NE/BL
F BV114PF AL/BC
F BV114PF AL/TR
F BV114PF AL/RO
F BV114PF AL/GR
F BV114PF AL/VR
F EX664PF IX
F EX665MLF IX
F EX664PF BC/IX
F EX664PF CF/IX
F EX665MLF CF
F EX664PF CF/RA
F EX664PF BLU/IX
F EX664PF VR/RA
F EX664PF VR/IX
F EX595MLF IX.
F EX595MLF CF
F EX695MLF IX.
F EX695MLF BC
F EX695MLF CF
F LX804E PF IX
F LX804E PF BL
F LX804E PF BC
F EX664I PF IX
F EX665MLFI IX
F F665MLF NI IX NI8
F EX664I PF BC/IX
F EX665MLFI BC/IX
F EX664I PF CF/IX
F EX665MLFI CF/IX
F EX664I PF VR/IX
F EX664I PF BLU/IX
F F665MLF NI BLU NI9
F EX664I PF BC/RA
F EX664I PF CF/RA
F EX664I PF VR/RA
F EX664I PF BLU/RA
F EX595MLF IX
F EX595MLF CF/IX
F EX695MLF IX
F EX695EMLF IX ITP1
F EX695EMLF IX FMT1
F EX695MLF BC/IX
F EX695EMLF BC FMT2
F EX695MLF CF/IX
F EX695EMLF CF FMT3
F FT 66 IX.
F LX804PF BL
F LX804PF BC
F LX804PF BC STX2
MAG KITC 1200 CF/IX
MAG KITC 1600 CF/IX
C ERC/90
C CTA 630DC/AS BLU
C ERC/90 DE
C CTA 630DC/AS AVO
C ERC/90 BE GN
C CTA 630DC/AS IX
C CTA 940DC/AS BLU
C ERC/90-T
C ERC/90-T DE
C CTA 940DC/AS AVO
C CTA 940DC/AS IX
C 658 P (X)T
C 658 P (X)T
C 615 (W)F
F ARC666 BLU
F ARC666 BC
FM22 M (OG)
C 448 M (X)
C 648 PT X B
FP 666 IX
FP 966 IX
K 647 VS(W)/O
K 647 VSX/O
K 600 V(W)/G
K 6C7 M(W)/R
K 6C7 M(W)/R
K 644 M(W)/S
K 644 M(W)/S
K 644 MS(W)/I
K 644 MS(W)/I
K 644 MS(X)/I
K 644 MS(X)/I
K 642 VS(X)/G
K 644 PS(A)/I
K 644 PS(G)/I
K 644 PS(B)/I
C 058 MT (X).1
K 647 PS(X)/I
K 642 MS(W)/R
K 642 MS(W)/R
F ARC666 .01 BLU
F ARC666 .01 BC
K 642 V(G)/G
C 758 MT (X)/I
C 858 MT (X)/I
LX 804E2 PF IX
LX 804E2 PF BL
HGK 2 IX IB.
HGM 2 (WH)IB.
HGM 2 (BR)IB
HGM 2 IX IB/old
HPE 2 IX IB.
FE 21 (WH)IB.
FE 21 (BR)IB.
FE 21 IX IB.
FM 20 (WH)IB
FM 20 (BR)IB
FM 20 IX IB.
FM 22 M ALU
KP 647 VS(X)/O(1)
HGK 2 (WH)IB
HGK 2 (BR)IB
HPE 2 (WH)IB
HPE 2 (BR)IB
K 345 E(X)/U
K 345 E(X)/U
C 448 M (XA)
C 058 MT (XA)
C 758 MT (XA)/I
K 642R VS(X)/G
FO 52 IX
FO 52 (ALU)
FO 52 (AN)
FC 52 IX
FC 52 IX
FC 52 (AN)
FC 52 (AN)
K 342 MS(W)/I
K 342 MS(X)/I
LX 804E2 PF MR
K 342 V(W)/O
K 343 V(X)/O
C 68 MT (X)
C 68 MT (XA)
FO 52 C IX
FO 52 C (WH)
FO 52 C (BK)
FC 52 C IX
FC 52 C (AN)
FP 966 IX FAV
KP 648 VS(X)/O
FB 22 AC IX
FB 22 AC (WH)
HB 22 AC IX
HB 22 AC (WH)
PB 22 AC IX
PB 22 AC (WH)
PB 22 AC (WH)
FB 52 C IX
FB 52 C IX
FB 52 AC (WH)
FB 52 AC (BK)
HB 52 C IX
HB 52 AC (WH)
HB 52 AC (BK)
PB 52 C IX
PB 52 C IX
PB 52 AC (WH)
PB 52 AC (BK)
PB 52 A IX
PB 52 A (WH)
K 6C7 M(W)/SK
K 6C7 M(W)/SK
FC 62 C IX AG
K 648 VX/O
K 648 V(W)/O
K 6C7 M(W)/SV
K 6C7 M(W)/SV
HGK 2 IX IB..
HGM 2 (WH)IB..
HGM 2 IX IB
HPE 2 IX IB..
FE 21 (WH)IB..
FE 21 (BR)IB..
FE 21 IX IB..
FM 20 IX IB..
HGK 2 (WH)IB.1..
HGK 2 (WH)IB.1..
HGK 2 (BR)IB.1..
HPE 2 (WH)IB.1..
HPE 2 (BR)IB.1..
FB 52 IX AUS
FB 52 IX AUS
FB 52 (WH)AUS
FB 82 C IX AUS
FB 82 C IX AUS
FB 82 C(WH)AUS
FB 82 C(WH)AUS
HGD 6 IX
KP 958 MS(X)/D
KP 648 MS(X)/D
FD 52 (ICE)
FD 52 (MR)
CP 648 MT (T)
CP 758 MT
CP 058 MT
K 342 V(W)/IR
K 601 V(W)/G
K 645 V(X)/G
K 645R V(X)/G
K 647R V(X)/G
FD 52 (CH)
FD 52 (SL)
FD 52 (GC)
CP 6480 MT.2 (X)F
FP 653
FE 21.B (BR) IB
FE 21.B (WH) IB
FE 21.B (WH) IB
FE 21.B IX IB
FE 21.B IX IB
FM 20.B IX IB
HGK 2.B (BR) IB
HGK 2.B (WH) IB
HGK 2.B IX IB
HGM 2.B (WH) IB
HGM 2.B IX IB
HPE 2.B (WH) IB
HPE 2.B (WH) IB
HPE 2.B IX IB
HPE 2.B IX IB
FC 52 C.2 /V IX
FC 52.2 /V (AN)
FC 52.2 /V IX
FO 52 C.2 (BK)
FO 52 C.2 IX
FO 52 C.2 (WH)
FO 52.2 (AN)
FO 52.2 IX
FB 52 C.2 IX
FB 52 C.2 IX
FB 52 AC.1 (BK)
FB 52 AC.1 (WH)
FB 52 AC.1 (WH)
FB 22 AC.1 IX
FB 22 AC.1 IX
FD 52.2 (CH)
FD 52.2 (GC)
FD 52.2 (GC)
FD 52.2 (ICE)
FD 52.2 (MR)
FD 52.2 (SL)
PB 52 C.2 IX
PB 52 C.2 IX
PB 22 AC.1 IX
PB 22 AC.1 IX
PB 22 AC.1 (WH)
HB 52 C.2 IX
HB 52 C.2 IX
HB 52 AC.1 (BK)
HB 52 AC.1 (WH)
HB 22 AC.1 IX
HB 22 AC.1 IX
C 658 P.3 (X)T
CP 648 MT.2 (T)
CP 758 MT.2 (T)
CP 058 MT.2 (T)
K 644 MS.C (W)/I
K 644 MS.C (X)/I
K 647 PS.C (X)/I
K 648 V.C(W)/O
K 648 V.C X/O
K 6C7 M.C(W)/R
K 6C7 M.C(W)/SV
K 6C7 M.C(W)/SK
KP 648 MS.B (X)/D
KP 958 MS.B(X)/D (T)
K 647R V.C(X)/G
K 645R V.C(X)/G
K 645 V.C(X)/G
K 601 V.C(W)/G
K 345 VT.B(W)/O
FP 653.3
C 648 PT.4 X I
K 342 MS.B(W)/I
K 342 MS.B(X)/I
C 615 .5 (W)F
K 632 M.C(W)/F
C 648 PT.3 X B
K 341 E(W)/U
C 649 PT XA U
FB 22 AC.1 (WH)
FB 22 AC.1 (WH)
HB 22 AC.1 (WH)
HB 22 AC.1 (WH)
CP 648 MT.2 B
CP 058 MT.2 B
FP 650.2
C 67S P2 X I
C 67S P2 X I
C 649 PT.3 XA U
K 345 E.B(X)/U
K 341 E.B(W)/U
CP 6V8 M (X) DE
C 65S P2 X B
C 61S M2 (W) T
C 64S M2 (W) T
C 64S M2 (W) T
K6M52(W)/F
K6M52(W)/F
K6G52S(X)/R
KP 648 MS (X)/DK (T)
KP 958 MS (X)/DK (T)
KP 648 MS (X)/DE (T)
KP 648 MS (X)/DE (T)
ST52X
ST52X
SC52VX
SC52VX
SD52I
SD52I
SD52K
K6T72S(X)/I
K6T72S(X)/I
K6T52S(W)/I
K6T52S(W)/I
K6T52S(X)/I
K6T52S(X)/I
K6G52(W)/U
K6G32(X)/G
K6G32(W)/G
K6C32(W)/G
K6C32(X)/G
K6E32(W)/G
K6E32(X)/G
K6E32(X)/G
K6G52(W)/G
K6G52(X)/G
K3G12(W)/U
K6E52(W)/EX
K6G72(W)/EX
CISFD 52.2 (ICE)
K6T72S(W)/NL
K6T72S(W)/NL
K6T72S(X)/NL
K6E52(W)/GR
FB 52 C.2 IX TD
K3G52S(W)/I
K3G52S(W)/I
K3G52S(X)/I
K3G52S(X)/I
K3G12(X)/U
K3G52S(W)/R
K3T32(W)/O
K6C320(W)/G
K6C320(X)/G
K6G520(W)/G
K6G520(W)/G
K6G520(X)/G
FB 52 C.2 (WH)
FB 52 C.2 (WH)
KP 648 MS (X)/DE
CP 648 MT.1
CP 758 MT.1
K3G52S(W)/AT
KP 648 MS (X)/DK
CP 058 MT.2
KP 958 MS (X)/DK
KP 958 MS.B (X)/D
FC 52.2 /V (AN) /HA
FC 52.2 /V IX /HA
CP65SP2 /HA
CP77SP2 /HA
CP97SE2 /HA
FC 52 C.1 /V IX /HA
KP9F92S(X)/DE
KP6T72S(X)/DK
A6TMH2F (W) IL
A6TMH2F (X) IL
A6TMH2F (X) IL
I6TMH2AF(W)/IL
I6TMH2AF(X)/IL
