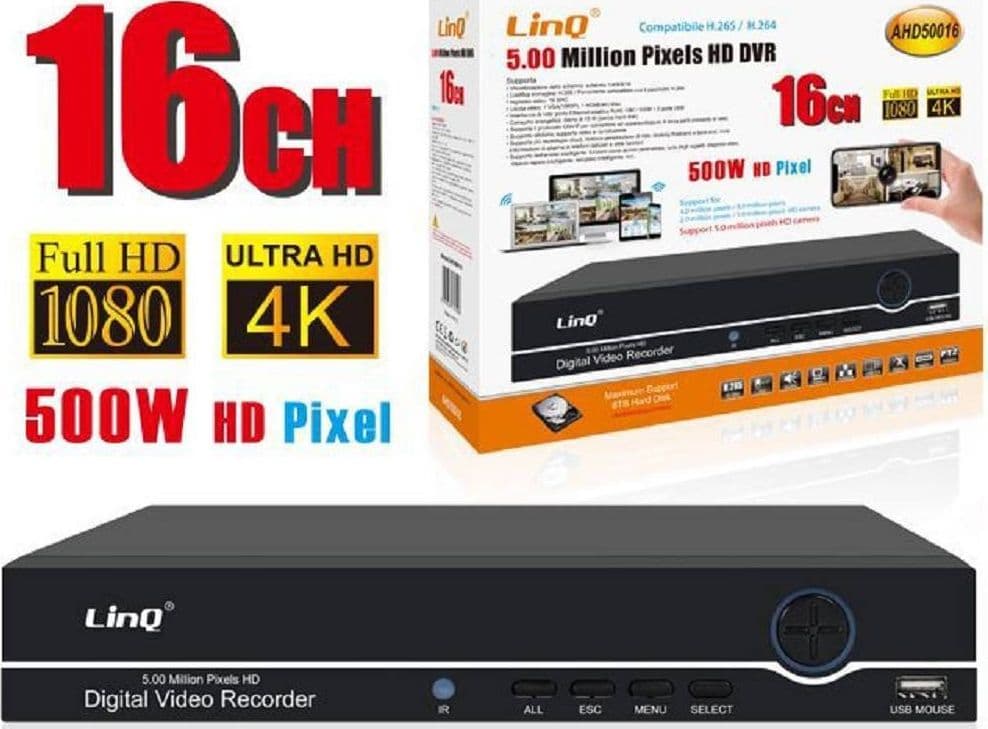

Dvr digital video recorder 16 canali 5mpx ahd full hd 1080p 4k 500w ahd50016

Dvr Digital Video Recorder 16 Canali Ahd Full Hd 1080p 4K 500W

•     Chip integrato HI3531D
•     16 Canali
•     Supporta risoluzioni fino a 5 Mpx (H.265)
•     Supporta telecamere multibrand
•     Motion detection
•     1 x SATA (fino a 8 Tb)
•     Uscita HDMi e VGA
•     Cloud con applicazione P2P - XMEye, Alimentatore e mouse compreso.

SPECIFICHE DEL PRODOTTO

•     Modello AHD50016
•     Main Processor ARM Cortex A7 Quad-core Processor
•     Sistema Operativo Embedded LINUX

Video

•     Input 16CH (2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc) - 80 Mb
•     Output 1 VGA, 1 HDMI

Audio

•     Output 1 Port 3.5mm(Linear, 1kΩ)
•     Audio Bit Rate 64kbps
•     Audio Compression standard G711u, G711a, ADPCM_DVI4

Allarmi

•     Sensor Input NO
•     Output NO
•     Motion Detection 16 channel
•     Email Alarm Si

Display

•     VGA Resolution: 1920×1080/1280×1024/1280×720
•     HDMI Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
•     Display Split 16CHxD1/9CHxD1/8CHxD1/4CHxD1/1CHx1080P
•     Digital Zoom si
•     OSD Camera Title, Time, Video Loss, Recording, Motion Detection

Registrazione

•     Video Compressione H265/H264/H265+/H264+

Risoluzioni

• 5MP(2592×1944), 4MP(2688×1520),3MP(2048×1536),1080P(1920×1080), 960P(1280x960),720P(1280×720),D1 (720×576/720×480)

Registrazione

• PAL :5MP@16×25fp,4MP@16x25fp,3MP@16×25fp,1080P@16×25fp, 960P@16×25fp,720P@16×25fp, D1@16×25fp
• NTSC: 5MP@16×30fp,4MP@16×30fp,3MP@16×30fp,1080P@16×30fp, 960P@16×30fp, 720P@16×30fp, D1@16×30fp
• Tipo di registrazione Manual\Timer\Motion Detection

Playback & Backup

• Local Sync Playback 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
• Remote Sync Playback YES
• Modalità di ricerca ALL, Channel, Manual, Time, Date, Motion Detection
• Funzioni di Playback Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital Zoom
• Backup Mode USB Device/Network

Network

• Interfaccia 1 x RJ45 10M/100M Adaptive Ethernet Interface
• Network Functions HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Search, P2P
• Compatibilità Compatibilità con tutti i dispositivi di rete(NVR,CMS,XVR,ecc.)
• Web Browser IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
• CMS Software Support Windows 7/ Windows 8/Windows 10
• Cloud Support(P2P) SI
• Smart Phone iPhone, iPad, Android, Android Pad

Hard Disk

•     Tipo di interfaccia 1 x SATA
•     Capacità Fino a 8TB

Generale

• Lingue Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek
• Interfaccia USB 3 USB 2.0 Interfaces
• Alimentazione DC12V/2A
• Working Environment -10~55℃/10~90%
• Dimensioni(W×D×H) 219*217*40(mm)
• Peso 2.0KG (senza HDD)
