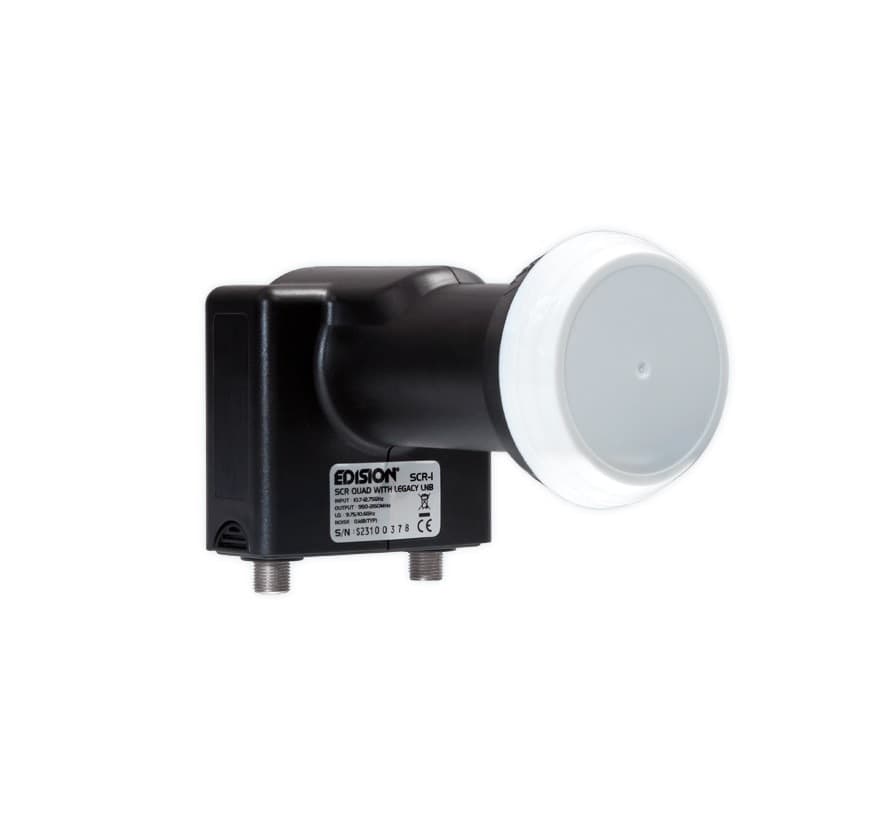

LNB SCR1 Quad Unicable 0.1dB marca Edision.
SCR Port
CH1 1210MHz
CH2 1420MHz
CH3 1680MHz
CH4 2040MHz
Legacy Port
950-2150MHz
Intervallo di frequenze:
Gamma di frequenza in ingresso
Bassa Banda: 10.7-11.7GHz
High Band: 11.7-12.75GHz
Uscita Gamma di frequenza - CSS
Banda di frequenza del canale 1: 1180 ~ 1240MHz
Banda di frequenza di Canale 2: 1390 ~ 1450MHz
Banda di frequenza di Canale 3: 1650 ~ 1710MHz
Banda di frequenza di Channel 4: 2010 ~ 2070MHz
Frequenza di uscita - Legacy 950-2150MHz
Tipo di uscita connettore
75Ω Connettore F femmina
Uscita Return Loss
8dB (min)
Oscillatore locale
LO. Frequenza
Banda bassa: 9,75 GHz
Banda Alta: 10.6 GHz
LO. stabilità di frequenza
± 1 MHz (max.) @ Temperatura ambiente
± 3 MHz (max.) @ Alta / bassa temperatura
LO. Frequenza rumore di fase
-50dBc / Hz @ 1 KHz (max.)
-75 DBc / Hz @ 10KHz (max.)
-95 DBc / Hz @ 100KHz (max.)
Figura di rumore
0.7dB (tip.)
Polarizzazione Croce
20dB (min.)
Requisiti di alimentazione
DC Consumo di corrente (CSS + porta Legacy):
310mA (max) a temperatura ambiente
Tensione di funzionamento - Legacy
V / L 11.5-14V 0kHz
V / H 11.5-14V 18-26KHz
H / L 16-19V 0kHz
H / H 16-19V 18-26KHz
Tensione di funzionamento - SCR 11-19V
Ambientale
Intervallo operativo di temperatura
-30 ℃ ~ + 60 ℃
Temperatura di conservazione
-55 ℃ ~ + 80 ℃
================================
