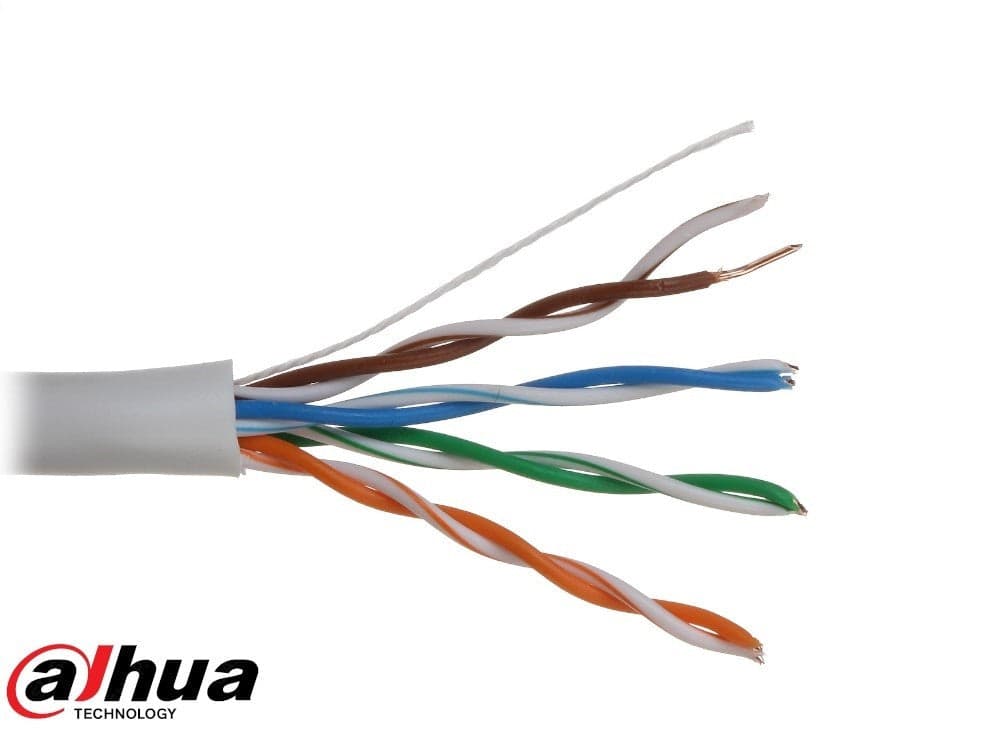

MATASSA BOBINA DAHUA CAVO RETE 100 METRI ETHERNET UTP CAT 5E 4X2 AWG 24 LAN RJ45 100% RAME - DH-PFM920C-A1
€4.80 delivery fee
MATASSA BOBINA DAHUA CAVO RETE 100 METRI ETHERNET UTP CAT 5E 4X2 AWG 24 LAN RJ45 100% RAME - DH-PFM920C-A1
€4.80 delivery fee
MATASSA BOBINA DAHUA CAVO RETE 100 METRI ETHERNET UTP CAT 5E 4X2 AWG 24 LAN RJ45 100% RAME
| Marca | DAHUA |
| Codice articolo | DH-PFM920C-A1 |
| Ean | 6923172558626 |
| Categoria | Cat.5E |
| Lunghezza Cavo | 100 Metri |
| Materiale | Rame - 100% |
| Tipologia Cavo | UTP |
| Connettorizzato | No |
UTP CAT5E Cable
>100 m) /carton UTP CAT5e, power over Ethernet, compatible with one cable
> High-purity oxygen-free copper conductor
> Customized PVC outer sheath; CE CPR Eca flame retardant class certified

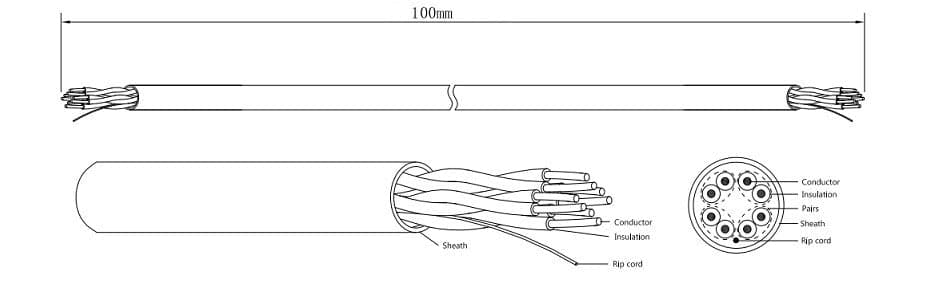

ConductorMaterialOxygen free copper (99.97% purity)Diameter0.45 mm ± 0.01 mmInsulationMaterialHDPEMin. Average Thickness0.18 mmDiameter0.81mm±0.1mmColor (4 Pairs)Blue, white/blue; orange, white/orange; green, white/green; brown, white/brownRip CordMaterialPolyesterSpecification500DSheathMaterialPVCMin. Average Thickness0.5 mmDiameter4.7 mm ± 0.3 mmColorWhiteElectricalMax. DC Resistance of a Single Conductor12Ω/100 mMin. Insulation Resistance5000MΩ·kmMax. DC Resistance Unbalance2% (pair intra), 4% (pairs inter)Dielectric StrengthNo breakdown with 1KV DC for 1 minTransmissionCharacteristic Impedance100 ± 15ΩNear End Cross Talk≥35.30 dB/100 m@100 MHzMax. Attenuation24.2 dB/100 m@100 MHzReturn Loss≥20.1 dB/100 m@100 MHzMechanicalTensile StrengthSheath≥13.5 MPa, insulation≥16 MPaElongation at BreakSheath≥150%, insulation≥300%Installation Bending Radius>8 times of outer cable diameterConductor Elongation at Break≥10%EnvironmentalShrinkage of Insulation≤5%Color Migration Resistance of InsulationNo migrationSheath Tensile Strength and Elongation at Break after Aging≥12.5 MPa, ≥100%Low Temperature Bending TestNo cracking after the testHeat Shock TestNo cracking after the testOperating Temperature–20°C to +60°CInstallation Temperature0°C to +50°CStorage Temperature and Humidity–10°C to +40°C, <60% (RH)SecurityVertical Fire Propagation TestComply with IEC 60332-1-2PackagingCable Length100.0 mNet Weight≥7.0 kgComplianceExecutive StandardsQ/DXJ 067-2019, EN50575-2014CertificationCertificationCPR Eca
