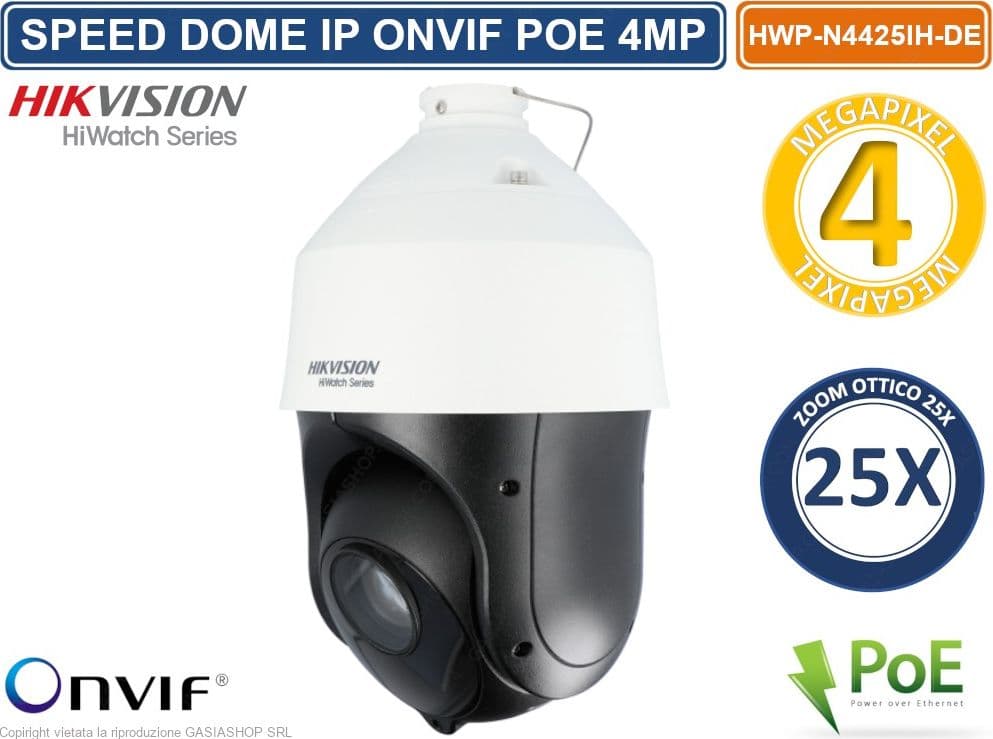

Name: Hikvision HWP-n4425ih-DE Hiwatch Series Telecamera Speed Dome IP PTZ 4mp Motorizzata 25x 4.8~120mm POE+ OSD WDR ip66
Brand: Hikvision
SKU: HWP-N4425IH-DE
Price: 430.05 EUR
Availability: InStock

Oggi

Tra 1 mese

Tra 2 mesi

143,35 €

Telecamera speed dome PTZ digitale IP Hiwatch series Hikvision sku. HWP-N4425IH-DE, risoluzione HD+ 2K 1440p da 4 Megapixel, ottica motorizzata 25x 4.8~120mm (57.6°~2.5° angolo di visione) e tecnologia di alimentazione PoE+. Menu OSD con funzioni regolabili: ATW, AWB, AGC, BLC, Real WDR 120dB, 3D-DNR, ROI, Digital zoom 16x, luminositá, nitidezza, mirror. È molto facile da usare attraverso il browser Internet Explorer e consente un comodo controllo remoto e gestione della telecamera. Il software fornito in dotazione della telecamera è progettato per la gestione e sorveglianza integrata di più telecamere di rete. Pertanto, è una soluzione ideale per i sistemi di sorveglianza che richiedono identificazione delle persone o dei veicoli. La telecamera soddisfa il grado di protezione IP66. Staffa PTZ non inclusa nella confezione, acquistabile separatamente. (vedi prodotti correlati).

Principali caratteristiche

4 Mpx high-performance 1/2.5" CMOS image sensor
Rrisoluzione HD+ 2K 1440p da 4.0 Megapixel
Compressione Video H.265+/H.265/H.264+/H.264
Alta Velocità, trasmissioni real-time a distanza.
Ottica varifocale motorizzata 4.8~120mm (25x) - Distanza infrarossi IR fino a 100m
Tecnologia di alimentazione PoE+ (alimentazione e video tramite cavo di rete) o 12V DC
Menù OSD: Real WDR 120dB, ATW, AWB, AGC, BLC, ROI, 3D-DNR, Digital zoom 16x.
Interfaccia Audio - 1ch ingresso audio / 1ch uscita audio.
Accesso multiplo da remoto: Web viewer, IVMS-4500, HIK-Connect
Slot Micro SD memory - Supporto per schede Micro SD fino a 256GB (possibilità di registrazione locale)
Installazione e configurazione P2P – Scan QR code
Menù OSD solo in lingua inglese
Protocollo di compatibilità ONVIF
Protezioni: Waterproof IP66
Alimentazione DC 12V e PoE+ (802.3 at, class4)

Specifiche tecniche:

MODFELLO	HWP-N4425IH-DE
CAMERA MODULE
IMAGE SENSOR	1/2.5" progressive scan CMOS
MIN. ILLUMINATION	Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON)
WHITE BALANCE	Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC	Auto/Manual
DAY & NIGHT	IR Cut Filter
SHUTTER TIME	1/1 s to 1/30,000 s
DIGITAL ZOOM	16×
PRIVACY MASK	24 programmable privacy masks
FOCUS MODE	Auto/Semi-automatic/Manual
WDR	120 dB WDR
LENS
FOCAL LENGTH	4.8 mm to 120 mm, 25× optical
ZOOM SPEED	Approx. 3.6 s (optical lens, wide-tele)
FIELD OF VIEW	Horizontal field of view: 59.5° to 2.6° (Wide-Tele) Vertical field of view: 35.7° to 1.5° (Wide-Tele) Diagonal field of view: 66.6 to 3.0° (Wide-Tele)
WORKING DISTANCE	10 mm to 1500 mm (wide-tele)
APERTURE RANGE	F1.6 to F3.5
IR
IR DISTANCE	100 m
SMART IR	Support
PTZ
PAN AND TILT RANGE	Pan: 360° endless; Tilt: -15° to 90° (Auto-flip)
PAN AND TILT SPEED	Pan: Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s; Tilt: Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
PROPORTIONAL ZOOM	Support
NUMBER OF PRESET	300
PATROL	8 patrols, up to 32 presets for each patrol
PATTERN	4 pattern scans, record time over 10 minutes for each scan
POWER-OFF MEMORY	Support
PARK ACTION	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ POSITION DISPLAY	Support
PRESET FREEZING	Support
SCHEDULED TASK	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
COMPRESSION STANDARD
VIDEO COMPRESSION	H.265+, H.265, H.264+, H.264
H.264 TYPE	Baseline Profile/Main Profile/High Profile
H.264+	Support
H.265 TYPE	Main Profile
H.265+	Support
VIDEO BITRATE	32 Kbps to 16384 Kbps
AUDIO COMPRESSION	G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
AUDIO BITRATE	64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
SVC	Support
SMART FEATURE
BASIC EVENT DETECTION	Motion Detection, Video Tampering Detection, Exception Detection
SMART EVENT DETECTION	Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Audio Exception Detection
ROI ENCODING	Main stream, sub-stream and third stream respectively support four fixed areas.
SMART RECORD	ANR (Automatic Network Replenishment), Dual-VCA
MAX. IMAGE RESOLUTION	2560 × 1440
STREAM	Support three streams
MAIN STREAM	50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
SUB-STREAM	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
THIRD STREAM	50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
IMAGE ENHANCEMENT	HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
NETWORK
NETWORK STORAGE	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
PROTOCOLS	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API	Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
SIMULTANEOUS LIVE VIEW	Up to 20 channels
USER/HOST	Up to 32 users. 3 levels: Administrator, Operator and User
SECURITY MEASURES	User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
CLIENT	iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
WEB BROWSER	IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
MINI SD MEMORY CARD	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB;
INTERFACE
AUDIO INPUT	1-ch
AUDIO OUTPUT	1-ch
NETWORK INTERFACE	1 RJ45 10 M/100 M Ethernet, PoE+ (802.3 at, class4)
GENERAL
POWER	12 VDC and PoE+ (802.3 at, class4) Max.: 18 W (Max. 7W for IR)
WORKING TEMPERATURE	-30°C to 65°C (-22°F to 149°F)
WORKING HUMIDITY	≤ 90%
PROTECTION LEVEL	IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
MATERIAL	ADC 12, PC+10% GF
DIMENSIONS	Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42")
WEIGHT (APPROX.)	Approx. 2 kg (4.41 lb)

Disegno tecnico:

Hikvision HWP-n4425ih-DE Hiwatch Series Telecamera Speed Dome IP PTZ 4mp Motorizzata 25x 4.8~120mm POE+ OSD WDR ip66
